Push Valves

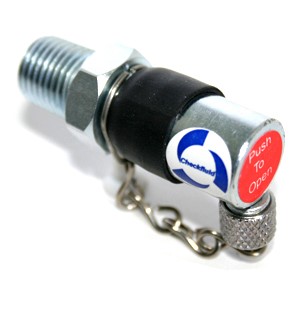

Push Valve

KP14NV Pushbutton Valve, 1/4" - 18 NPTF, Viton, Steel

KP18NV Pushbutton Valve, 1/8" - 27 NPTF, Viton, Steel

* Please note, other sampling valves are available but will need to be special ordered.


  • Sampling Pressure: 5 psi (low viscosity) - 750 psi (0.4 - 51.7 bar)
  • Max. Working Pressure: 6000 psi (414 bar)
  • Sealing Materials: Viton (FKM), Neoprene (SBR)
  • Materials: Carbon Steel standard

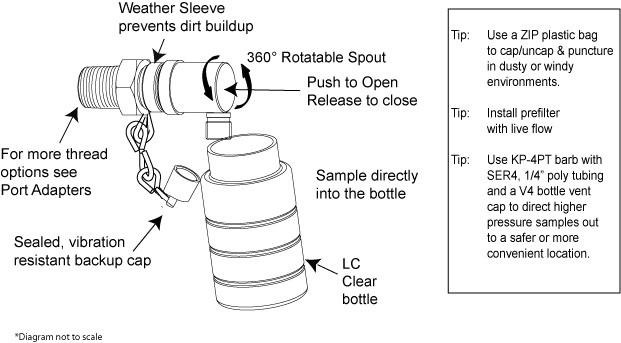

  • Easy push to open - release to close action.
  • Reliable: Dual sealed design independently tested at 7800 psi for one million cycles.
  • Patented elastomeric valve seals vacuum tight at 27 in Hg.
  • Unique 360° rotating spout offers convenient sampling and installation without swivel fittings.
  • Corrosion resistant stainless steel chain and clip with no exposed springs.
  • Cost effective - no probes needed.
  • NEW rugged spout design with easy to grip knurled cap.
  • NEW nickel plating offers over 5 times the industry standard corrosion protection.


Push Valve
